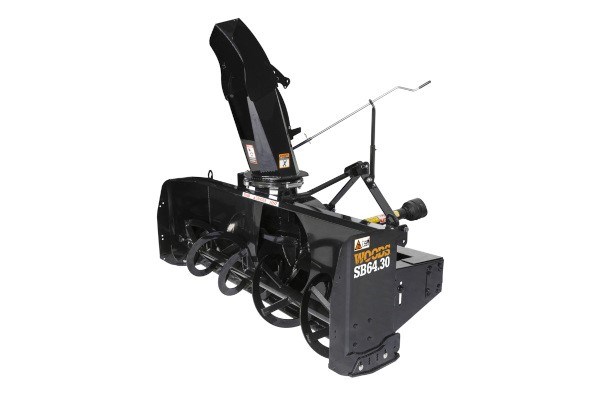

Woods SB64.30

New Equipment / Woods / Snow Removal / Snow Blowers / SB64.30

Chain Drive Cover No tools required to access bearing, shear bolt, and to service the chain drive.
Skid Shoe protects the frame and prevents wear. Replaceable and adjustable for height.
Standard Mechanical or Operational Hydraulic Chute Adjustments adjust the position of the chute.
Quick-Hitch Ready from the factory making for easier tractor hook up.

Product TIer	Standard
Tractor PTO HP	20-40
Hitch Category	CAT 1
Operating Weight; including chute & hydraulic deflector (lbs)	540
Working Width (in)	63 1/2
Working Height (in)	27 1/2
Overall Width (in)	64 3/4
Overall Length (in)	37 3/4
Impeller Diameter (in)	24
Impeller Width (in)	7
Impeller (rpm)	540
Main Auger Diameter (in)	15
Auger Driven System	Chain No. 60
Auger (rpm)	170
Chute Rotation	Manual or Hydraulic
Replaceable and Reversible	Yes
Cutting Edge Dimension (in)	3/8 x 1 1/2
Main Driving System	Driveline Series 40
Chain Idler	Yes
Parking Stand	Yes
Number of Auger Shear Bolt	1 (on drive shaft)
Number of Impeller Shear Bolt	1 (on driveline)
Type of Hitch	3 pts., CAT 1
Quick Hitch Compatible	Yes
Gearbox Warranty	6-years Includes Seals

SB64.30
