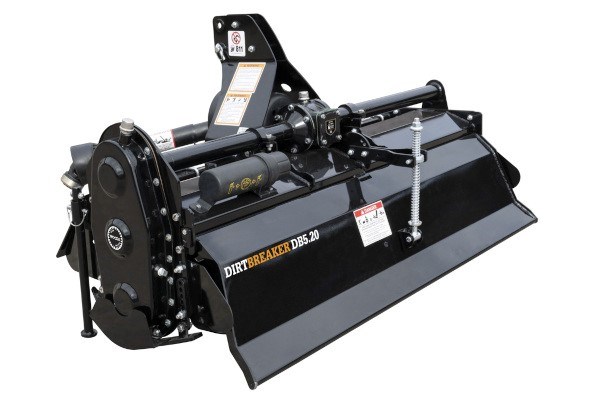

Woods DB5.20
DB5.20
Rotary Tillers
Overview:
STANDARD
Tackle Tough Conditions
The gear-driven side drive is more durable and reliable than chain-driven tillers. Built for long-term durability and requires little maintenance.
Optimize Your Seed Bed
Delivers a finely tilled seedbed in just one pass.
Easy Connection
Engineered Quick-Hitch Ready for easy tractor connection.
Features
- Engineered Quick-Hitch Ready for easy tractor connection. Bushings included.
- Robust Gear-Driven Side Drive provides years of reliable service and requires far less maintenance than chain-driven units.
- Tapered Tailgate removes furrow for a finished seedbed.
- Adjustable skid shoes to provide easy depth control.
- Parking stand included for easy connection.
Specifications
| Product Tier | Standard |
| Tractor PTO HP | 20-30 |
| Tractor PTO Speed (rpm) | 540 |
| Rotor Speed (rpm) | 244 |
| Tine Rotation Direction | Forward |
| Maximum Tilling Depth (in) | 6.9 |
| Drive Type | Gearbox |
| PTO Driveline Protection | Slip clutch |
| Gearbox Housing | Heavy-duty cast iron |
| Gearbox Warranty | 6 years |
| Working Width (in) | 62.1 |
| Overall Width (in) | 67.2 |
| Weight (lbs) | 640 |
| Type of Blades (shape) | "C" |
| Number of Blade Flanges | 8 |
| Number of Tines | 48 |
| Number of Tines/Flange | 6 |
| Skid Shoe Depth Adjustments (in) | (6) 0.4 - 2.2 |
| Tractor Hitch | CAT 1 |
| Quick-Hitch Ready | Yes |
| Parking Stand | Standard |
| Woods C® | Compact/Subcompact |
